OCTG Coupling Quality Control: Key Processes and Inspection Methods

OCTG Coupling Quality Control: Key Processes and Inspection Methods

In the oil and gas industry, the reliability and performance of Oil Country Tubular Goods (OCTG) are critical for ensuring safe and efficient drilling operations. Among these, OCTG couplings play a vital role in connecting various tubular components and maintaining well integrity. Given the harsh conditions these couplings must endure—extreme pressure, high temperatures, and corrosive environments—quality control is essential to prevent costly failures, ensure operational safety, and minimize environmental risks.

We will let you know the key quality control processes and inspection methods used to ensure that OCTG couplings meet industry standards and are fit for deployment in challenging oilfield environments. From material selection to non-destructive testing, every step in the quality control process ensures the reliability and performance of these critical components.

The Importance of Quality Control in OCTG Couplings

OCTG couplings form the backbone of tubular connections in oil wells, linking various segments of drill pipes, casing, and tubing. Poorly manufactured or faulty couplings can lead to leaks, blowouts, and other operational failures, which can have disastrous consequences. As such, quality control is a cornerstone of the OCTG manufacturing process. It ensures that only compliant and high-performing couplings are sent to the field, helping to reduce downtime, prevent accidents, and maintain well integrity.

Failures in coupling quality can result in equipment breakdowns, costly repairs, and potential environmental harm. For this reason, every coupling must undergo stringent quality control measures, which range from material testing and dimensional inspection to more sophisticated non-destructive testing techniques.

Key Quality Control Processes for OCTG Couplings

1. Material VerificationThe foundation of high-quality OCTG couplings begins with the selection of appropriate materials. OCTG couplings are typically made from high-strength steel to withstand the demanding conditions they face during drilling and production. Before any machining begins, manufacturers conduct material verification tests to confirm that the steel meets specific chemical and mechanical property requirements, such as yield strength, tensile strength, and toughness. These properties are essential for ensuring that the couplings can withstand the pressures and corrosive elements found in oil and gas wells.

   Material verification often involves:

• Spectrographic analysis: This technique is used to determine the chemical composition of the steel, ensuring it meets API 5CT standards.

• Mechanical testing: Tensile, impact, and hardness tests verify that the material can handle the physical stresses encountered in the field.

• Corrosion resistance tests: These are essential for environments with high levels of CO₂ or H₂S, which can cause rapid deterioration of non-resistant materials.










2. Precision ManufacturingOnce the material is verified, the manufacturing process begins. OCTG couplings must be machined to exact specifications to ensure they connect tubular components securely and without leakage. Modern CNC machines and automated production lines are critical in maintaining consistent quality during production. The precision required in this process cannot be overstated, as even small deviations in dimensions can result in improper fit, which may cause coupling failure during drilling operations.




   Quality control during manufacturing includes:

• Continuous monitoring: Advanced software tools track the machining process in real time to ensure that the dimensions of the couplings remain within specified tolerances.

• Calibration of equipment: CNC machines must be regularly calibrated to maintain the high precision required for threading and finishing OCTG couplings.









3. Dimensional InspectionDimensional accuracy is critical for OCTG couplings to ensure proper assembly with the mating components. Dimensional inspections involve precise measurements of internal and external diameters, thread profiles, and overall length. High-precision tools like coordinate measuring machines (CMMs), optical comparators, and laser measuring systems are used to check that the couplings meet the exact specifications outlined in the relevant industry standards, such as API 5CT.




   Proper dimensional inspection prevents:

• Improper fit: Ensuring that threads align correctly and that the coupling can be tightened securely without gaps or mismatches.

• Stress concentration points: Detecting areas where the coupling may be prone to failure under load due to inconsistent dimensions.
















4. Threading Quality AssuranceThe threads of OCTG couplings are vital to their performance. Couplings with defective threading are more likely to experience failure in the field. Therefore, threading quality assurance is one of the most critical steps in the quality control process. Special attention is given to ensuring that the threads are free from defects such as burrs, cracks, or deformations. This is done through thread gauging, pitch measurements, and profile verification using specialized inspection tools.




   Threading issues can result in:

• Leaking connections: Poorly formed threads can lead to improper sealing between pipe segments, causing leaks or blowouts.

• Weak joints: Defective threads may result in joints that are unable to bear the loads and stresses encountered during drilling or production operations.




5. Non-Destructive Testing (NDT)Non-destructive testing (NDT) is one of the most effective methods for detecting internal and surface defects in OCTG couplings without damaging the components. Common NDT methods include:







   These NDT methods are integral to ensuring that OCTG couplings are free from defects that could cause failure during high-pressure operations. By identifying potential issues early in the production process, manufacturers can avoid costly failures in the field.

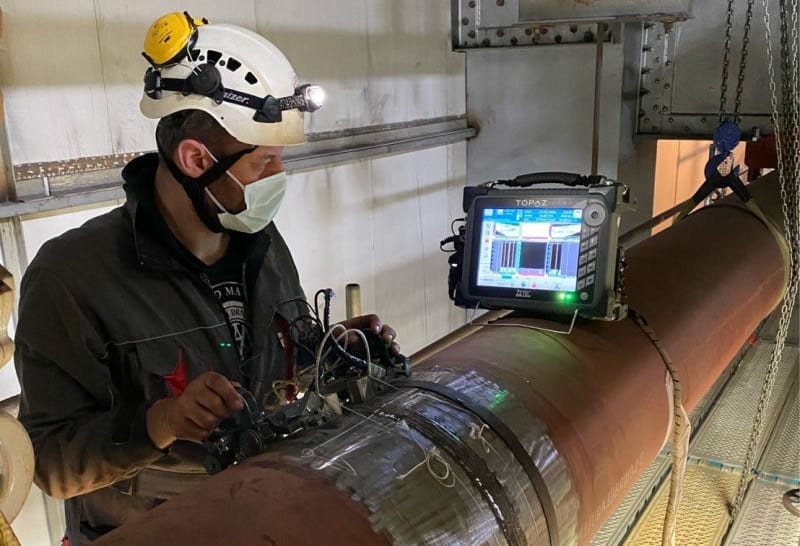

• Ultrasonic Testing (UT): Ultrasonic waves are used to detect internal flaws such as cracks, voids, or inclusions within the coupling material. UT is essential for verifying that the couplings are free of hidden defects that could compromise their performance.

• Magnetic Particle Inspection (MPI): This technique is used to detect surface and near-surface defects by magnetizing the coupling and applying magnetic particles. It’s particularly effective for finding cracks or discontinuities on the surface of the coupling that could weaken the material.

• Eddy Current Testing (ECT): ECT is used to detect surface defects, such as cracks or corrosion, by measuring variations in electromagnetic fields as they pass through the material. It’s highly sensitive to surface anomalies that could impact coupling performance.




6. Hardness TestingThe ability of OCTG couplings to resist wear, deformation, and damage during drilling operations is heavily dependent on their hardness. Hardness testing measures the material's resistance to indentation and deformation, ensuring that the couplings are strong enough to handle the mechanical stresses of oilfield environments. Typically, this is done using Rockwell or Brinell hardness testers, and the results are compared to the standards required by the application.




7. Hydrostatic Pressure TestingHydrostatic testing is a critical process used to validate the structural integrity and pressure resistance of OCTG couplings. In this test, the coupling is filled with water and subjected to high pressure to simulate the conditions it will face in the field. The test checks for leaks, deformations, or any signs of weakness in the coupling's structure. Couplings that pass this test are deemed ready for deployment in high-pressure environments, while those that fail are either repaired or discarded.




   The benefits of hydrostatic testing include:

• Verifying structural integrity: Ensuring that the coupling can withstand the pressures of downhole environments.

• Leak detection: Identifying weak points or defects that may cause the coupling to fail under pressure.

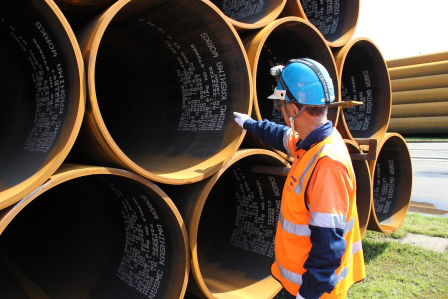

8. Visual InspectionWhile advanced testing methods can detect many defects, visual inspection by trained professionals remains an essential part of the quality control process. Inspectors carefully examine the couplings for surface irregularities such as scratches, rust, or improper finishing that could affect their performance. Visual inspection serves as the final check before the couplings are packaged and shipped to ensure that no defects were overlooked during previous quality control steps.




Continuous Improvement in Quality Control

Quality control for OCTG couplings is a dynamic process, constantly evolving to meet the demands of a rapidly changing industry. Manufacturers continuously refine their quality control practices through innovation, adopting new technologies and methods to improve the precision, reliability, and safety of their products. This process often includes:

• Investing in new equipment: Upgrading to the latest CNC machines, laser measurement systems, and non-destructive testing technologies.

• Implementing stricter standards: Regularly reviewing and updating quality control protocols to align with the latest API standards and industry best practices.

• Training staff: Ensuring that quality control inspectors and production personnel are up-to-date on the latest techniques and standards to maintain a high level of proficiency.




Conclusion

In the oil and gas industry, the safety and success of drilling operations often hinge on the reliability of OCTG couplings. Rigorous quality control processes, from material verification to hydrostatic testing, ensure that these critical components meet the highest standards of performance and durability. By employing a combination of advanced inspection methods and continuous improvement practices, manufacturers can produce OCTG couplings that perform reliably in even the harshest environments. As the industry continues to evolve, maintaining strong quality control practices will remain essential to preventing failures, enhancing well integrity, and safeguarding oilfield operations.

With a strong commitment to quality control, manufacturers not only protect the integrity of their products but also contribute to the overall safety and efficiency of oil and gas projects worldwide.
